Technical info:

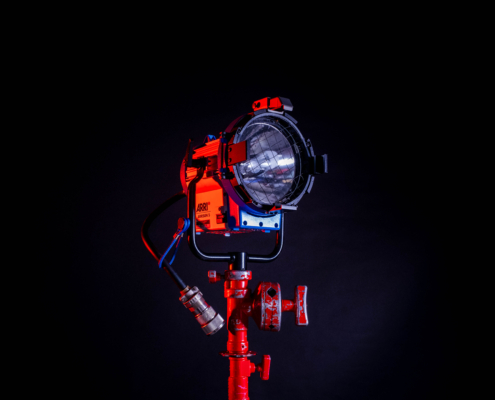

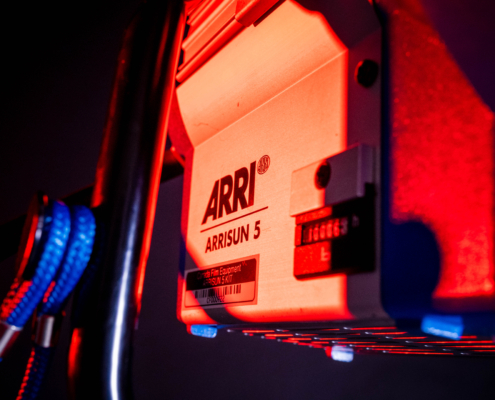

ARRI Arrisun 5 HMI PAR (575W,) Specs
Type | PAR |
Rating | 575 W |
Lamp | Single-Ended Metal Halide 575 W |
Color Temperature | Approximately 6,000 K |
Socket (Lampholder) | G22 |
Lens (Condenser) | None, UV protective glass: 6.89″ (175 mm) diameter |
Accessory Size | Scrims and barndoors: 7.76″ (197 mm) diameter |
Beam Angle | 9 – 42° |
Mounting | 1-1/8″ (28 mm) Spigot |
Dimming Range | 50 – 100% Via optional ARRI ballast |
Voltage | 95 V with optional Ballast |
Cable | Veam connector on the head 15 A U-ground connector on the optional ballast |
Certifications | CE |
IP Rating | IP23 |
Dimensions | 14.1 x 10.7 x 12.2″ (358 x 272 x 310 mm) |
Weight | 8.4 lb (3.8 kg) |
