Blackmagic Ursa Mini Pro 4.6k Camera Kit

Blackmagic URSA Mini Pro Camera Kit

Overview:

This Kit Includes:

2x V-mount batteries
1x V-Mount Dual charger
2x 128 GB CFast Cards
1x Card Reader
Side Handle/ Top Handle
EF Mount

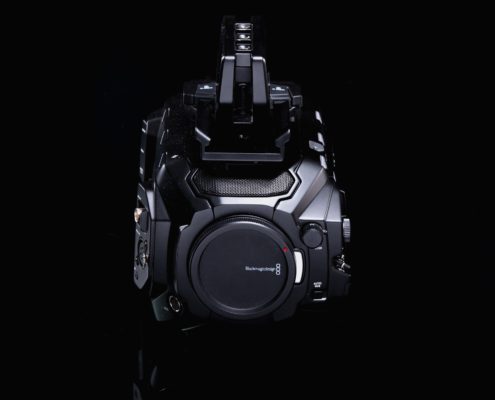

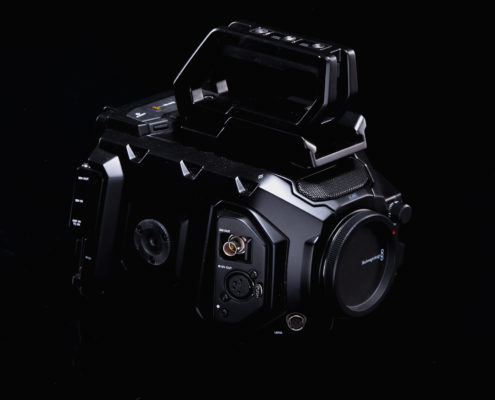

Blackmagic URSA Mini Pro 4.6K Cinema Camera

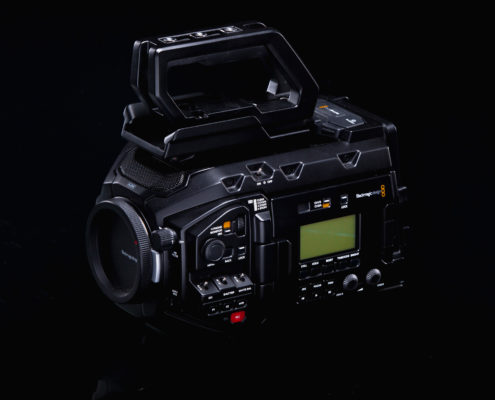

Blackmagic Design‘s URSA Mini Pro 4.6K Digital Cinema Camera brings expanded control set and increased functionality. The most noticeable difference is the addition of external camera controls. No longer will menus have to be accessed to change exposure settings, activate slow/fast motion, or engage focus assist or other functions. The exterior of theBlackmagic URSA Mini Pro 4.6K Camera also gains a monochrome LCD panel which displays essential shooting data at a glance. Another welcome pro feature is the implementation of built-in ND (neutral density) filters.

Rent Blackmagic URSA Mini Pro 4.6K Cinema for:

4.6K Super 35 HDR CMOS Sensor
4.6K up to 120 fps, 300 fps at 1080p
15 Stops of Dynamic Range at 3200 ISO
USB-C Expansion Port for External Disks
CinemaDNG and ProRes 444 & 422 Recording
Dual CFast 2.0 and SD Memory Card Slots
12G-SDI Output, Timecode and REF Input
2 XLR Audio Inputs with Phantom Power
2-/4-/6-Stop ND Filter, Magnesium Body
Interchangeable Lens Mount

Rent Now

Rental Rates

$299.00	For the 1^st day
$299.00	For a Weekend

Technical info:

Sensor
Size	25.34 x 14.25 mm (Super-35)

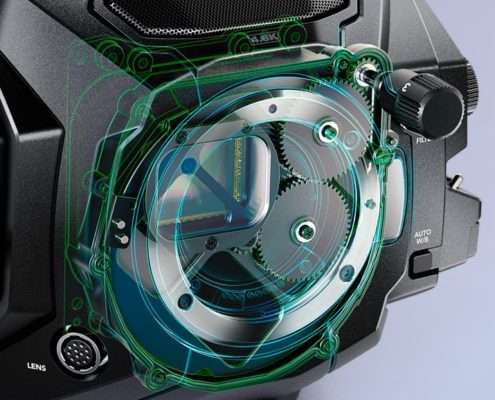

Lens Mount	Active Canon EF (interchangeable)
Effective Resolution	4608 x 2592
Dynamic Range	15 stops
Shooting Resolutions	4608 x 2592 4608 x 1920 (4.6K 2.4:1) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K DCI) 3840 x 2160 (Ultra HD) 3072 x 2560 (3K Anamorphic) 2048 x 1152 (2K 16:9) 2048 x 1080 (2K DCI) 1920 x 1080
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

Display
Dimensions	4″ diagonal
Screen Type	LCD capacitive touchscreen
Resolution	Not specified by manufacturer

Recording
Media Card Slots	2 x CFast 2.0 2 x SD UHS-II
Recording Formats	CinemaDNG Raw (Uncompressed or Lossless 3:1/4:1 Compressed): 4608 x 2592 4096 x 2304 4608 x 1920 3072 x 2560 2048 x 1152 Apple ProRes: 4608 x 2592 4608 x 1920 4096 x 2304 4096 x 2160 3072 x 2560 2048 x 1152 2048 x 1080 1920 x 1080
Data Rates	4608 x 2592: Uncompressed CinemaDNG Raw – 513MB/s CinemaDNG Raw 3:1 – 180 MB/s CinemaDNG Raw 4:1 – 135 MB/s 3840 x 2160: Apple ProRes 444 XQ – 312.5 MB/s Apple ProRes 444 – 165 MB/s Apple ProRes 422 HQ – 110 MB/s Apple ProRes 422 – 73.6 MB/s Apple ProRes 422 LT – 51 MB/s Apple ProRes Proxy – 22.4 MB/s 1920 x 1080: Apple ProRes 444 XQ – 62.5 MB/s Apple ProRes 444 – 41.25 MB/s Apple ProRes 422 HQ – 27.5 MB/s Apple ProRes 422 – 18.4 MB/s Apple ProRes 422 LT – 12.75 MB/s Apple ProRes Proxy – 5.6 MB/s Rates based on 30 frames per second.
Metadata Support	Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Connections
Input	1 x BNC, HD/3G/6G/12G-SDI
Output	2 x BNC, HD/3G/6G/12G-SDI (clean output and monitor output)
Reference	Tri-Sync/Black Burst/Timecode
Analog Audio Inputs	2 x XLR (mic/line/AES, phantom power output)
Audio Output	1 x 3.5mm headphone (TRRS connection supports in-line microphone)
Remote Control	2 x 2.5mm LANC (controls record start/stop, electronic iris, and electronic focus)
USB	1 x USB Type C for software updates
Supported Standards	SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1 SDI Audio Sampling: 48 kHz and 24-bit

General
Microphone	2 x Built-in cardioid microphones for stereo recording with -10dB pad and low-cut filter
Speaker	Integrated mono (enabled in playback when headphones are not used)
System Requirements	Mac OS X 10.11 or newer Windows 8.1 or newer
Power Connectors	Inputs: 1 x 4-pin XLR input for external power supply or battery 1 x 12-pin molex connector on rear battery plate Outputs: 1 x 12V output using 4-pin XLR for powering external accessories such as EVF 1 x 12V regulated output from rear molex 12-way connector
Battery Plate Support	Mounting holes for V-mount and Gold mount battery plates
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Humidity	0 to 90% RH, non-condensing
Dimensions	8.2 x 8 x 5.8″ / 21 x 20.1 x 14.7 cm
Weight	5.1 lb / 2.3 kg
