Overview:
This Kit Includes:
- 16 Custom Dolly Track Wheels
- Soft Polyurethane Track Wheels
- Wheel Trucks Swivel
- For 1.5 to 1.9″ O.D. Pipe
- Supports 100 lb of Camera
- Center Support

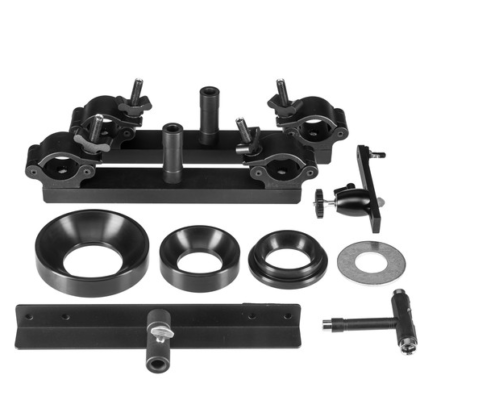

- 75 & 100mm Bowl Adapters
- 150mm Bowl Adapters

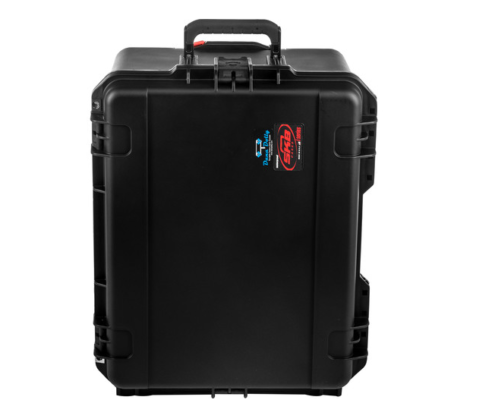

- Custom Flight Case

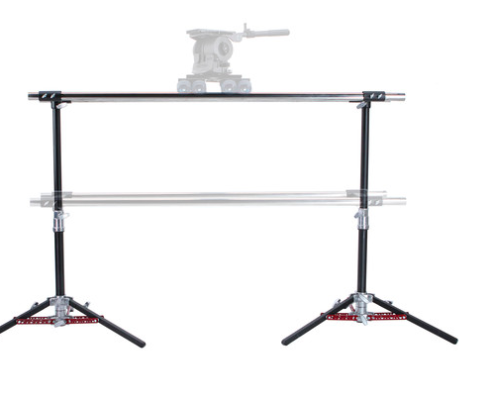

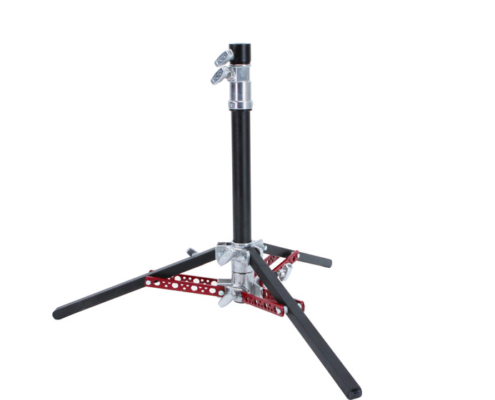

- 2x Slider Stand(3.8′)
- Pair of Pipes

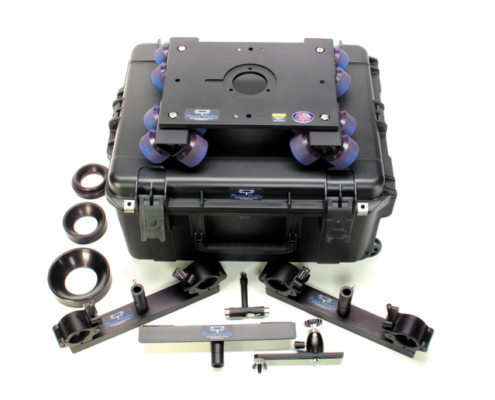

Dana Dolly Kit

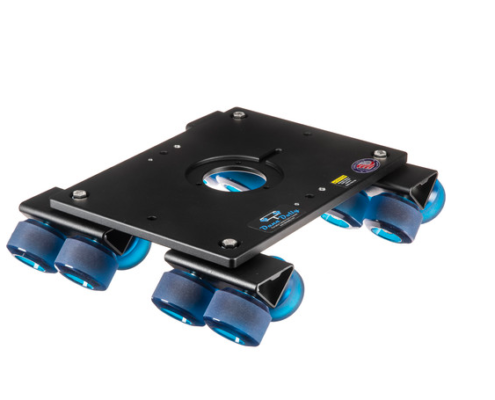

The Dana Dolly Portable Dolly System Rental Kit with universal track ends is a heavy duty camera dolly platform that rides on 16 custom modified soft polyurethane wheels that resist flat spotting and use ABEC-7 rated precision bearings providing you with extremely smooth dolly shots. Dana Dolly Kit is complete with 75, 100, and 150mm bowl adapters. Dana Dolly Kit comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved track, which you must source separately. The manufacturer recommends using standard speed rail or Schedule 80 aluminum pipe of compatible size. The Dana Dolly Kit includes two universal track ends, which accept inch and a quarter pipe (standard speed rail) up to 1.9″ O.D., and fit into available standard Junior stand receivers or 5/8″ Baby pins. A center support is included in the Dana Dolly Kit for long track runs or when using heavy cameras.
Rental Rates
| $125.00 | For the 1st day |
|---|---|
| $150.00 | For a Weekend |
Technical Info:
| Material of Construction | Dolly Platform Machined 6061 Aluminum Track Wheels Bearings |
| Load Capacity | 100 lb (45.4 kg) |
| Head Fitting | Incorporated: Mitchell Mount With included adapters: 75/100/150mm |
| Accessory Mounting | 2 x 3/8″ Through Hole 2 x 1/4″-20 Threaded 2 x 3/8″-16 Threaded |
| Track Format | Outer Diameter: 1.5 to 1.9″ (3.8 to 4.8 cm) Truck Distance: Just under 12″ (30.5 cm) on center |
| Temperature | Max: 100°F (37.8°C) |
| Dimensions (L x W) | Dolly: 14 x 10″ (35.6 x 25.4 cm) Flight Case: 24 x 20 x 14″ (61 x 51 x 35.6 cm) |
| Weight | 45 lb (20.4 kg) |
