Overview:
15.6″ Director Monitor

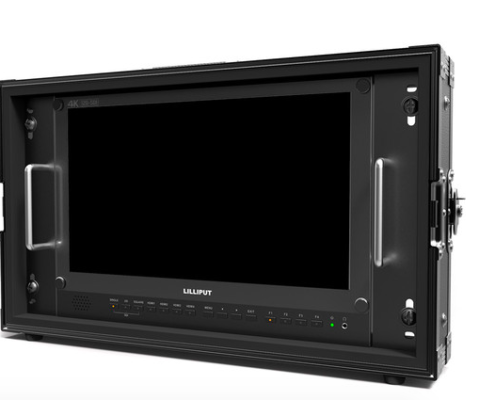

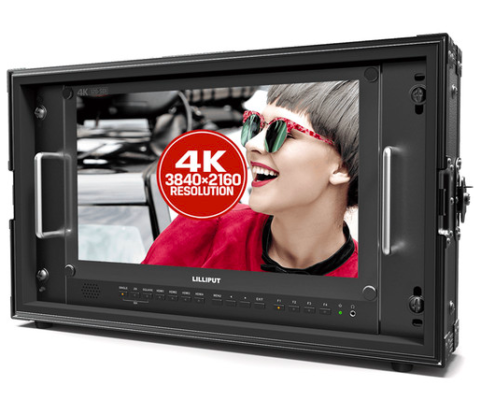

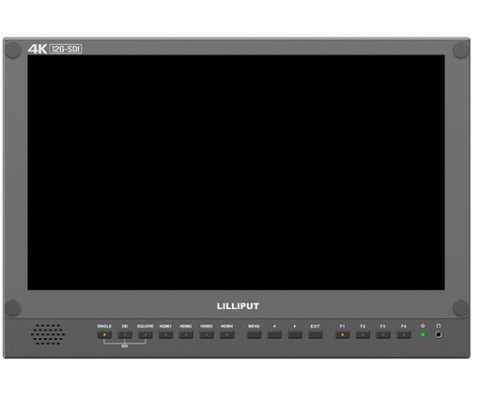

The 15.6″ 4K Broadcast Monitor from Lilliput features a native resolution of 3840 x 2160. It supports 12G-SDI single-link signal input and loop output. This monitor is backward compatible with 6G-SDI, 3G-SDI, HD-SDI, and SDI input signals. It supports quad views from different input signals simultaneously, such as 12G-SDI, 3G-SDI, and HDMI.
- Supports picture-in-picture function
- Supports 6U rackmount

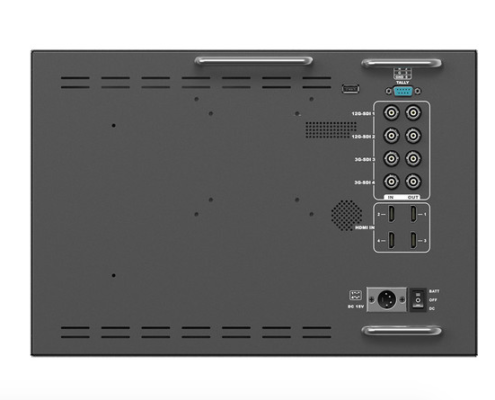

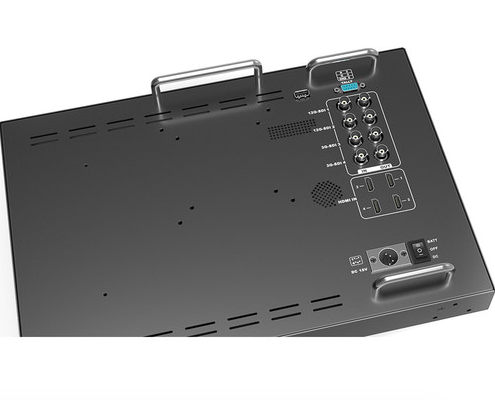

- Interfaces: 2 x 12G-SDI, 2 x 3G-SDI, 1 x HDMI 2.0, 3 x HDMI 1.4, tally input, 12G-SDI single link, dual link, and 3G-SDI quad link
- Metal housing
Rental Rates
| $110.00 | For the 1st day |
|---|---|
| $110.00 | For a Weekend |
Technical Info:
Lilliput BM150-12G Specs
| Display | |
|---|---|
| Screen Size | 15.6″ (39.6 cm) |
| Screen Type | IPS |
| Resolutions | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Brightness | 330 cd/m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 176°/ 176° |
| Input/Output | |
|---|---|
| Input | 2 x 12G-SDI 2 x 3G-SDI 1 x HDMI 2.0 (supports 4K 60 Hz) 3 x HDMI 1.4 (supports 4K 30 Hz) 1 x Tally |
| Output | 2 x 12G-SDI 2 x 3G-SDI |
| Audio | 1 x Speaker 1 x Earphone slot |
| Power Requirements | |
|---|---|
| Current | 2.8 A (15 V) |
| Input Voltage | 12 to 24 VDC (XLR) |
| Battery Plate | V-mount/Gold mount |
| Power Consumption | < 34 W |
