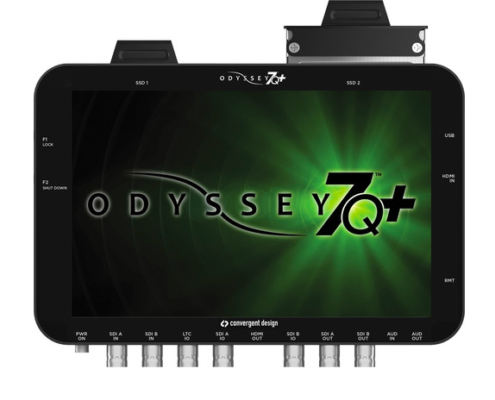

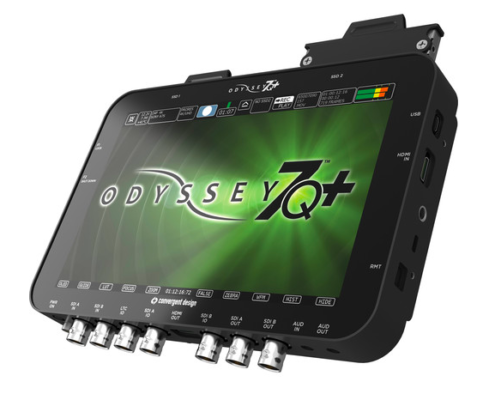

Odyssey7Q+ OLED Monitor – 4K Recorder Monitoring

Professional Monitor

7.7″ 1280×800 OLED touchscreen panel featuring true blacks and accurate color with a full range color gamut for REC709 or DCI-P3 viewing.

Flexible I/O

The Odyssey7Q+ features two dedicated 3G-SDI inputs, two dedicated 3G-SDI outputs, two switchable 3G-SDI input/outputs, one HDMI input, one HDMI output (up to 1080p 30fps). Active Cross-Conversion means that all outputs are always active regardless of which input is used.

Multi-Stream Monitoring

Up to four HD video signals can be input and viewed simultaneously (quad-split) or live-switched (choose between inputs for full screen display). A future paid update will allow Multi-Stream Recording of up to four simultaneous Apple ProRes 422 (HQ) files and an XML log file of the live switch.

Image Analysis Tools

Waveform— Luma only, RGB Parade, Red only, Blue only, Green only, Full Size and Compact Size options
Histogram — Luma only, RGB Parade, Red only, Blue only, Green only, Full Size and Compact Size options
Vectorscope — Analog or digital; Trace display in green or color (true CbCr); Variable Zoom 1.0x – 15.0x (finger drag left-right); Zoom Presets 1, 2, 5, 10, 15x (finger drag up-down)
False Color — six programmable levels & adjustable ranges
Zebras — Dual adjustable zebra exposure indicators, selectable colors
LUT Support — LUTs for Log formats from ARRI, Blackmagic Design, Canon Panasonic and Sony, plus up to 140 custom 3D-LUTs in .CUBE format

Focus Assist & Pixel Zoom on Odyssey7Q+ OLED Monitor – 4K Recorder

Focus Assist — Video + Edges (Peaking), Edges Only, Enhanced Edges, user choice of color: Red, Green, or Blue
Pixel Zoom — 1:1 and 2:1 Pixel Zoom with moveable image
Hyper Zoom — 4, 6, 8, 10, and 12x Pixel Zoom on selected portion of image displayed in the lower right corner of the OLED display with selectable color reference frame

Anamorphic De-Squeeze on Odyssey7Q+ OLED Monitor – 4K Recorder

2.0x, 1.5x, 1.33x de-squeeze options for monitoring anamorphic footage. Adjusted image sent to video outputs; recording unaffected.

Center Extraction mode de-squeezes and magnifies center portion of image for common anamorphic formats. Adjusted image sent to video output; recording unaffected.

• 1.33x (1.78:1) — Stretches center 4:3 image to cover 16:9 frame
• 2.0x (2.39:1) — 2.0x stretch with image zoom and crop to 2.39:1
• 2.0x (2.67:1) — 2.0x stretch with image zoom to 2.67:1

 Odyssey7Q+ OLED Monitor – 4K Recorder LUT System & Custom 3D LUT Support

• Expanded set of Preset LUTs
• Support for user-loadable custom 3D LUTs (up to 140)
• 17x, 32x, 33x, 64x, 65x 3D-LUT .CUBE formats supported
• .CUBE LUTs translated for Odyssey using Convergent Design 3D-LUT Converter App
• LUTs are currently for monitoring only, not recording
• LUTs viewed during recording noted in XML file metadata (new CD Apple ProRes Transfer Utility 1.7 required)
• Extended and Legal Range LUTs supported (EE vs LL)
• Image Analysis Tools can measure “LUTTED” image or original source
• Video outputs can independently turn ON/OFF LUT or Mirror OLED

Built-in Preset 3D LUTs

ARRI_EE_LOG_R709 — Standard Alexa LogC to Video LUT (camera default)
Blackmagic Design
BMD_CC_EE_FILM_V — Blackmagic Cinema Camera LUT from DaVinci Resolve (Version 2)
BMD_PC_EE_FILM_V2 — Version 2 Blackmagic Production Camera 4K LUT from DaVinci Resolve
Canon_EE_709_LOG_WDR — Canon Log/Rec.709 to Wide Dynamic Range Rec.709
Canon_EE_Cin_LOG_WDR — Canon Log/CinemaGamut to Wide Dynamic Range Rec.709
PANASONIC_EE_LOG_709 — Duplicate of the ALEXA Rec.709 LUT
RED_EE_RLF_RG3 — REDlogFilm to REDgamma3 with color space as input, e.g. REDcolor3
SONY_EE_Slog1_R800 — S-Log1 to Rec.709 (800%) with no color space change, matching the in-camera MLUT
SONY_EE_Slog2_LC709A — Alexa style Low Contrast Rec.709, converted from the Sony original to Extended range in and out, to match the in-camera MLUT
SONY_EE_Slog3C_L709A — Alexa-style Low Contrast Rec.709, converted from the Sony original to Extended range in and out, to match the in-camera MLUT
SONY_EE_Slog2_R800 — S-Log1 to Rec.709 (800%) with no color space change, matching the in-camera MLUT
SONY_EE_SL2_L709A-1 — S-Log2 to Rec.709 when rating the FS700 at 1000ISO (1 stop over)
SONY_EE_SL2_L709A-2— — S-Log2 to Rec.709 when rating the FS700 at 500ISO (2 stops over)
SONY_EE_SL3C_L709A-1 — S-Log2 to Rec.709 when rating the FS7 at 1000ISO (1 stop over)
SONY_EE_SL3C_L709A-2 — S-Log2 to Rec.709 when rating the FS7 at 500ISO (2 stops over)

Note: All LUTs listed are in the industry-standard .cube format and are available with firmware v2015.7 or later. They must be loaded through the CD 3D-LUT Converter App and then loaded onto an Odyssey SSD or Odyssey Utility Drive in order to then be loaded into the Odyssey7Q+. Additional LUTs can be downloaded from Convergent Design’s website.

Additional Monitoring Features on Odyssey7Q+ OLED Monitor – 4K Recorder

4K / 2K Monitoring Modes — 17:9 Letterboxed within 16:9 image or Center-Cut to 16:9. Letterbox or Center-Cut image is sent to video outputs, full image frame is recorded
Monochrome Monitoring Mode — View Luma only or individual Red, Green, or Blue channel in grey tone
Aspect Ratio Guides — Standard and Custom (user adjustable), may be used for framing guides, Horizontal/Vertical framing guides available

Recording on Odyssey7Q+ OLED Monitor – 4K Recorder

4K / UHD / 2K / HD Video Recording

Record 4K (4096×2160), UHD (3840×2160), 2K (2048×1080) and HD (1920×1080, 1280×720) Video in Apple ProRes 422 (HQ) over SDI. The Odyssey7Q+ can record 4K/UHD 10-bit or 1080p60 10-bit over HDMI.

Uncompressed DPX 4:4:4 RGB Video Recording

Record 2K (2048×1080) and HD (1920×1080) Video in 12-bit or 10-bit uncompressed DPX files.

HDMI 4K/UHD to 2K/HD Supersampling

An HDMI-based 4K (4096×2160) or UHD (3840×2160) video signal can be supersampled in real time in the Odyssey7Q+ to a 2K (2048×1080) or HD (1920×1080) video signal and recorded in Apple ProRes (HQ, 422, or LT). The resulting images out-resolve the 2K/HD image that many smaller cameras can produce internally. Another advantage is if the camera is limited to 8-bit output, the Odyssey7Q+ supersampling will result in a pseudo-10-bit color sampling for improved color reproduction.

Included Recording Options on Odyssey7Q+ OLED Monitor – 4K Recorder

Compressed Formats:
4K/UHD 10-bit YCC 4:2:2 up to 30fps in Apple ProRes 422 HQ, 422, 422 LT
2K/1080p 12-bit RGB 4:4:4: up to 30fps in Apple ProRes 4444 Regular and XQ
2K/1080p 12-bit RGB 4:4:4: up to 60fps with Canon C500 in Apple ProRes 4444 Regular and XQ
2K/1080p 10-bit YCC 4:2:2 up to 60fps in Apple ProRes 422 HQ, 422, 422 LT
1080i 10-bit YCC 4:2:2 up to 60i in Apple ProRes 422 HQ, 422, 422 LT
720p 10-bit YCC 4:2:2 up to 60fps in Apple ProRes 422 HQ, 422, 422 LT

Uncompressed Formats on Odyssey7Q+ OLED Monitor  :

2K/1080p RGB 10/12-bit 4:4:4 up to 30fps in DPX file format
1080p RGB 10-bit 4:4:4 up to 60fps in DPX file format

Record Options for Purchase or Rental

ARRI ALEXA ARRIRAW
ARRIRAW (16:9) up to 60fps

Canon Cinema Raw (C500/C300 Mark II)
4K/UHD RAW up to 60fps (30fps for C300 Mark II)
2K/HD 12-bit up to 30fps
QHD RAW up to 30fps (C300 Mark II only)
4K RAW to 4K Apple ProRes up to 30fps (C300 Mark II only)
QHD RAW to UHD Apple ProRes up to 30fps (C300 Mark II only)

Sony FS RAW (FS7/FS700)
4K RAW up to 60fps
2K RAW up to 240fps
4K RAW to 4K/UHD Apple ProRes up to 60fps
4K RAW to HD Apple ProRess up to 240fps
4K RAW Burst to 4K/UHD Apple ProRes at 100 and 120fps (FS700 only)

POV RAW
POV 2K 10-bit RAW
POV HD 10-bit RAW
POV HD 12-bit RAW

Note: ARRIRAW above 30fps, Canon RAW 50/60fps, and Sony FS 2K RAW 200fps and 240fps require two SSDs

Record Triggers

Touchscreen
SDI record trigger (ARRI, Canon, Panasonic, Red, Sony)
HDMI (with compatible cameras)

SSD Recording Media

To enable recording on the Odyssey, Convergent Design Premium SSDs (Odyssey SSDs) or third party SSDs qualified by Convergent Design must be used.

Third-Party SSD Support

The Odyssey 7Q+ supports approved third party SSDs (optional SSD Handle kits required to mount). Qualified third-party SSDs include:

• Samsung 850 Evo PRO in 128GB, 512GB, and 1TB
• Samsung 850 Evo 1000GB

Note: Samsung SSDs draw more power than Odyssey SSDs. Convergent Design recommends using an AC-powered USB3 adapter or a Thunderbolt adapter when connecting Samsung SSDs to a computer.
