Red Epic Dragon 6k
Resolution is more than just attention to detail. From large objects to granule textures, 6K images cultivate the nuance of every image, leaving nothing behind. Improvements to micro-contrast and MTF produce a cleaner image, drastically reducing moiré and aliasing artifacts. When outputting 6K files to 4K or HD, your image will appear more refined and detailed compared to those captured at lower resolutions. The choice is simple; Bigger is better.
THIS STILL WAS PULLED FROM 6K EPIC DRAGON MOTION FOOTAGE
6K resolution translates to over 19 MP, packing the same detail you expect from your DSLR into a cinema camera. When you can capture motion and stills in 6K 2.4:1 at up to 100 frames per second (fps), or 6K Full Format at 75 fps, you get up to 100 chances per second to capture the perfect picture. Every still is raw and Adobe Photoshop compatible, which means your workflow doesn’t need to change—even if technology does. The RED DRAGON sensor blurs the line between motion and still cameras, giving you the best of both worlds.
Just because your specs changed, doesn’t mean your gear has to. All existing accessories, rail components, and modules designed for EPIC-X or M are compatible regardless of what sensor is installed. Instead of making your accessories obsolete, RED proudly takes great care in making sure your equipment lasts as long as possible. Change has never been so easy.
A NEW LOOK

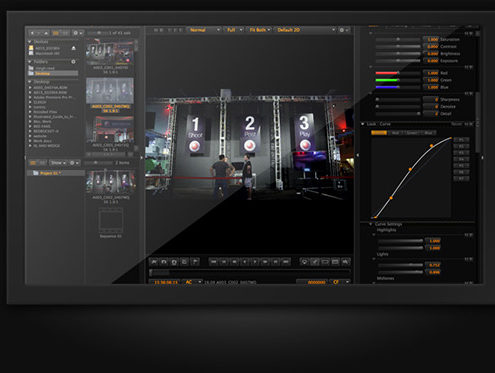

A new sensor means a new look, and REDCINE-X PRO gives you all tools you need to dial in your image the way you want it. With its latitude at 6K resolution, you can play with color, curves, and composition with less limitations than ever before. Now with the introduction of the RED ROCKET-X card, your RED workflow just got 5x faster than ever before. REDCINE-X PRO harnesses the power you need to tame your 6K EPIC DRAGON footage and is available for free only on RED.com.
Click here to learn more about REDCINE-X PRO.
|SENSOR TYPE||RED DRAGON 19.4 Megapixel CMOS|
|EFFECTIVE PIXELS||6144 x 3160|
|SENSOR SIZE||30.7 mm x 15.8 mm (Diagonal: 34.5 mm)|
|DYNAMIC RANGE||16.5+ stops|

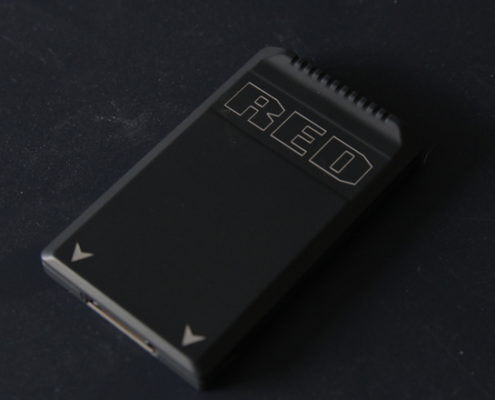

|MAX DATA RATES||Up to 200 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 170 MB/s using RED MINI-MAG (120GB & 240GB) or REDMAG 1.8″
|MAX FRAME RATES1||75 fps at 6K Full Format (6144 x 3160), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
|PLAYBACK FRAME RATES
|23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions|
RANGE FROM 2:1 UP TO 22:11
|4:1 REDCODE for 6K Full Format (6144 x 3160) at 24 fps
10:1 REDCODE for 6K Full Format (6144 x 3160) at 60 fps
2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
5:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps
|6K Full Format (6144 x 3160), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
|APPLE PRORES||DSMC2 cameras only|
|AVID CODECS3||DSMC2 cameras only|
|WEIGHT||5 lbs (BRAIN Only)|
|OPERATING TEMPERATURE||0°C to 40°C (32°F to 104°F)|
|STORAGE TEMPERATURE||–20°C to 50°C (–4°F to 122°F)|
|RELATIVE HUMIDITY||0% to 85% non-condensing|
|COLOR MANAGEMENT||3D LUT capabilities with REDCAST Module|
|AUDIO||2 channel, uncompressed, 24-bit 48 kHz
Optional 4 channel, and AES/EBU digital audio
|REMOTE CONTROL||Ethernet, RS232 and GPI Trigger
Wireless control with optional REDMOTE and R.C.P. Bridge modules
|MONITOR OUTPUTS||3G-SDI (HD-SDI) and HDMI with Frame Guides and Lookaround
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI Only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
|MONITOR OPTIONS||DSMC2 RED Touch 4.7″ LCD and DSMC2 RED Touch 7.0″ LCD compatible with DSMC2 LEMO Adaptor B and LCD/EVF cable.
RED Touch 9.0″ LCD, RED Touch 7.0″ LCD, RED Touch 5.0″ LCD, RED PRO 7″ LCD, DSMC2 RED EVF (OLED), BOMB EVF (OLED) and BOMB EVF (LCOS) with LCD/EVF cable.
|4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
|VIDEO EDITING SOFTWARE
|Adobe Premiere Pro, Avid Media Composer,
DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro
