Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless

This Kit Includes:

Additional charges will apply for Extra Receiver

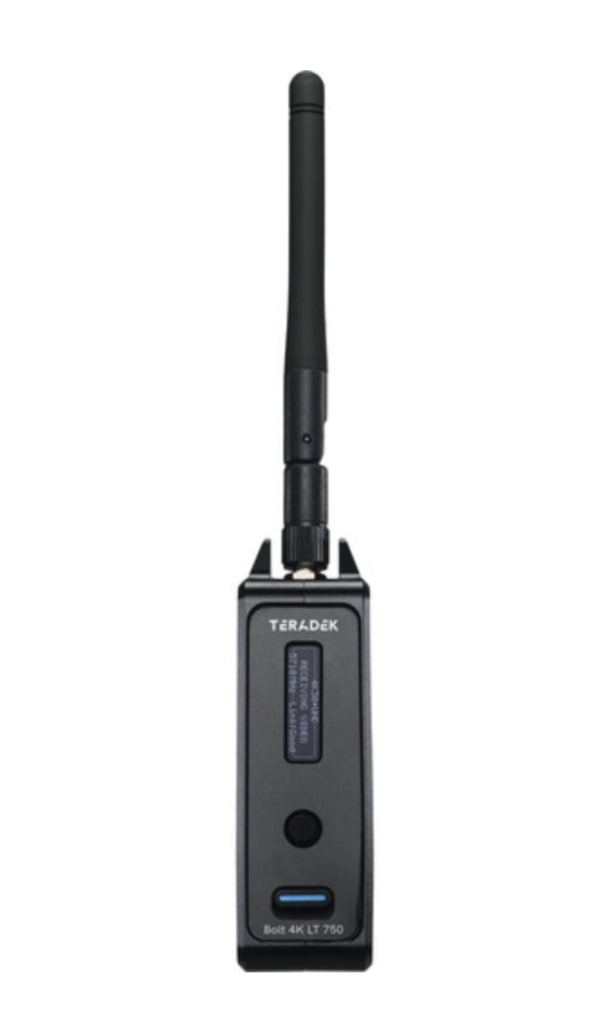

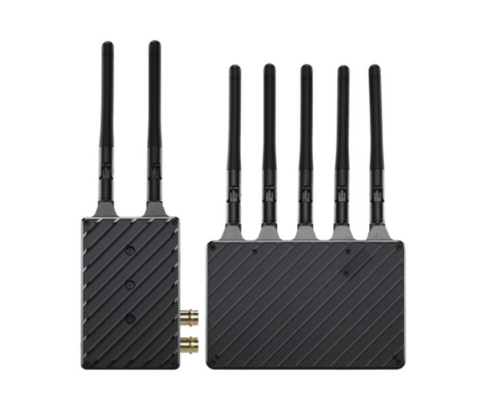

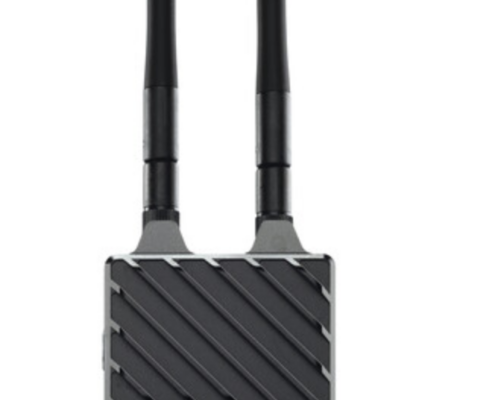

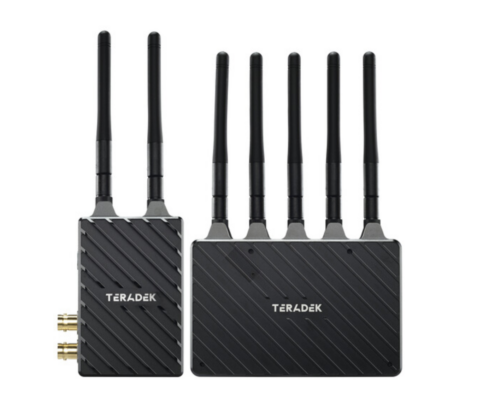

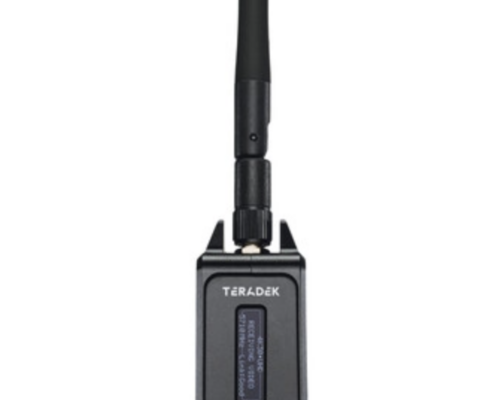

Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek.

Rental Rates

Teradek LT 750

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
# of Channels	13 (40 MHz) 25 (20 MHz)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	17 dBm
Wireless Video Compression	Uncompressed

Interfaces

Transmitter Antenna Ports	2 x RP-SMA
Receiver Antenna Ports	5 x RP-SMA

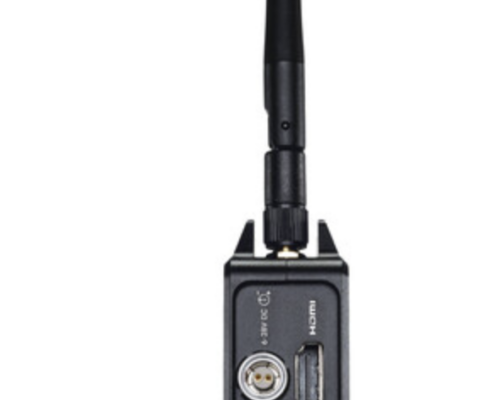

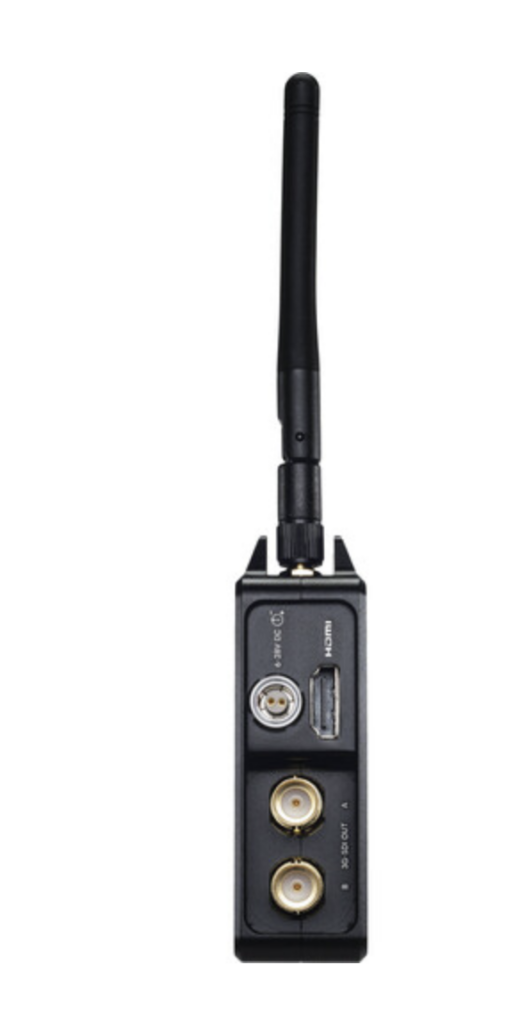

Transmitter Video Connectors	1 x HDMI Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output
Receiver Video Connectors	1 x HDMI Output 1 x BNC (3G-SDI) Output
Transmitter Other I/O	1 x USB Micro-B Input
Receiver Other I/O	1 x USB Micro-B Input
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel
Encryption	256-Bit AES

Format Support

Video Format	SDI/BNC: 1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps 1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps HDMI: UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps
Audio Format	2-Channel 24-Bit 48 kHz LPCM Audio
Timecode	Yes

Display

Transmitter Panel Type	OLED
Receiver Panel Type	OLED

Power

Transmitter Built-In Battery	None
Receiver Built-In Battery	None
Transmitter Power Connector	1 x 2-Pin LEMO (6 to 28 VDC) Input
Receiver Power Connector	1 x 2-Pin LEMO (6 to 28 VDC) Input
Transmitter Power Consumption	Device: (9 W)
Receiver Power Consumption	Device: (11 W)

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C
